Elite Etch series

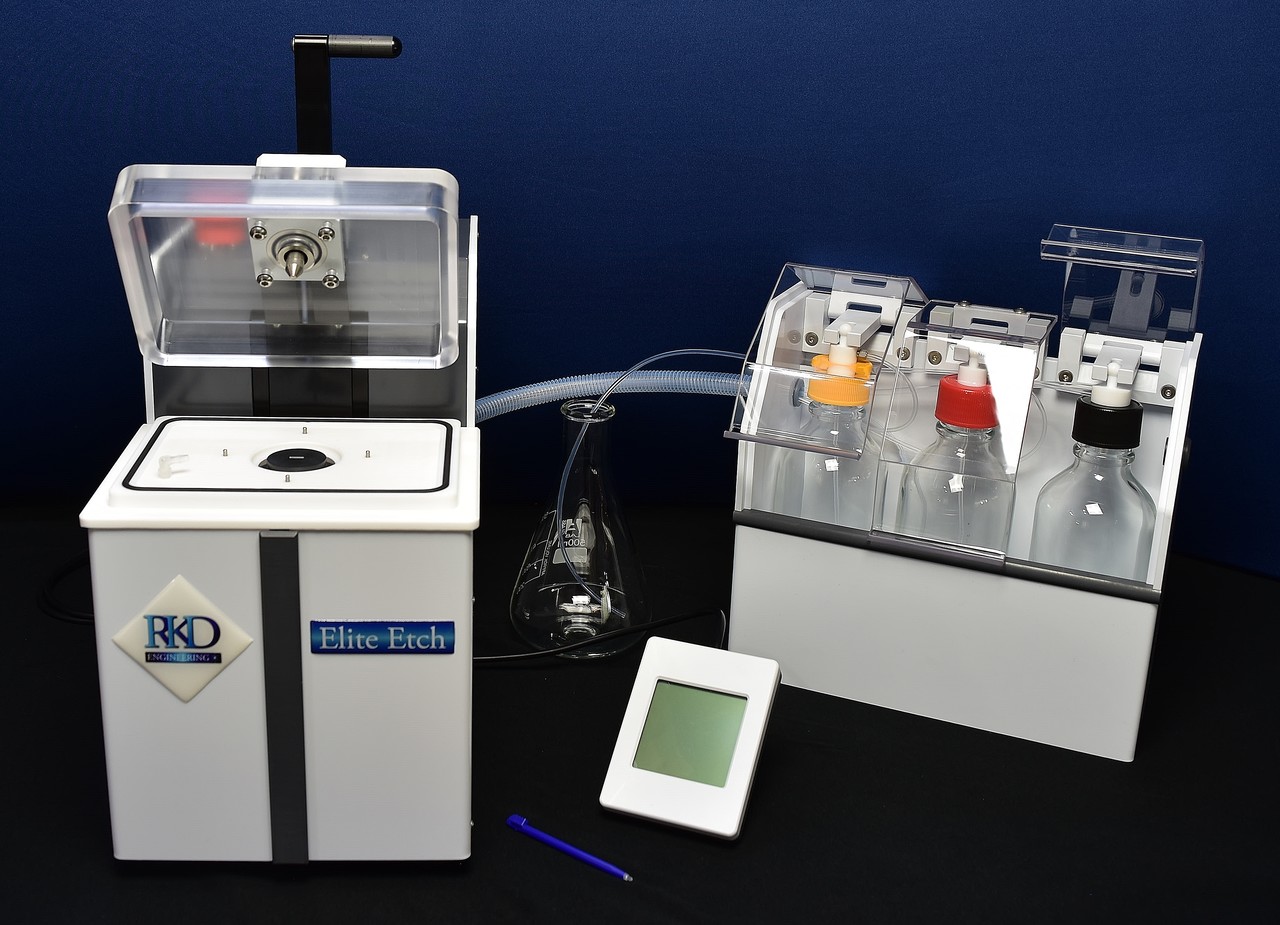

The Elite Etch series by RKD Engineering comprises automated mixed acid decapsulators designed for precise and safe opening of various semiconductor packages.
Elite Etch 7000
Elite Etch 7000
Elite Etch Cu 7100
Elite Etch Cu 7100
Elite Etch Cu ESD 7200
Elite Etch Cu ESD 7200
Mega Etch 7300
Mega Etch 7300
 |  |  |  |  |
Fully Automated Process Control | ≤ 20 μm Etching Accuracy | Dual Acid System HNO₃ + H₂SO₄ Compatibility | ≤ 15 min Typical Etching Time | Multi-Package Ready Plastic, Ceramic, MEMS, QFN |
Key Features & Benefits
Elite Etch Series delivers safe, automated chemical decapsulation optimized for
semiconductor failure analysis.
Combining reliable process control, wire-safe etching, and versatile package compatibility, the Elite Etch Series delivers high-performance chemical decapsulation optimized for semiconductor failure analysis and reverse engineering.
1. Fast & Consistent Etching Performance
With automated acid delivery and precise high-temperature control,
average decapsulation is completed in under 15 minutes. Ensures repeatable and
reliable results for high-throughput environments.
2. Sensitive Component Protection
Engineered with ESD-safe operation and optimized acid flow dynamics to
protect Cu/Au/Al bond wires and other delicate parts.
Ideal for high-value chip analysis and failure diagnostics.
3. Versatile Package Compatibility
Supports full, local, and bevel etching modes with GUI-based control,
adaptable to a wide range of packages including plastic, ceramic, and MEMS.
Perfect for both R&D and production applications.
